Sharp V801U
Exceptional brightness and flexible installation — the 8,000 lm powerhouse for demanding environments.
The Sharp V801U is a high-performance installation projector designed to deliver stunning visuals in large venues, conference rooms, and higher education settings. With a powerful 8,000 ANSI lumens of brightness and WUXGA resolution, it ensures that your presentations remain crisp and legible even in rooms with high ambient light levels.
Equipped with a long-lasting laser light source, the V801U eliminates the need for lamp replacements, significantly reducing the total cost of ownership and maintenance downtime. Its advanced cooling system ensures whisper-quiet operation, allowing the audience to focus entirely on the content without distraction.
Installation is made effortless thanks to a suite of professional features. The V801U offers motorized zoom, focus, and wide lens shift capabilities, providing maximum flexibility in projector placement. Additionally, its 360-degree installation capability and portrait mode support make it an ideal choice for creative signage and complex architectural mapping.
With comprehensive connectivity options including HDBaseT, HDMI, and DisplayPort, the V801U integrates seamlessly into any professional AV infrastructure. It supports 4K input signals and offers advanced image adjustment tools like geometric correction to ensure a perfect image on any surface.
- 8,000 lm Brightness – Brilliant performance in large spaces and brightly lit environments.
- WUXGA Resolution – High-definition 1920 x 1200 detail for sharp text and vivid graphics.

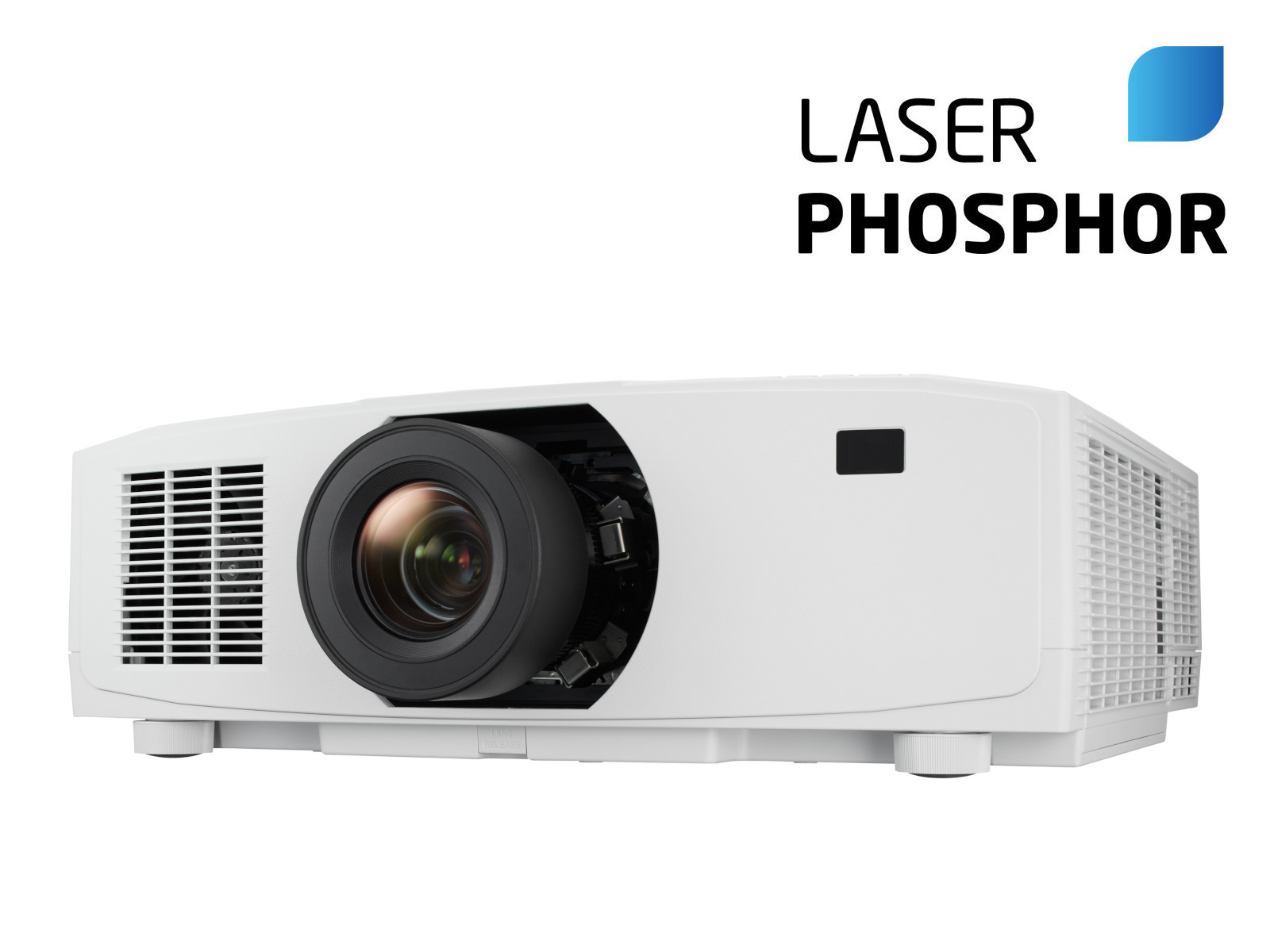

- Laser Light Source – Up to 20,000 hours of maintenance-free operation for ultimate reliability.
- Motorized Lens Shift – Vertical and horizontal adjustment for easy alignment without moving the projector.
- 360° & Portrait Projection – Versatile mounting options for creative installations and digital signage.
- HDBaseT Support – Simplifies installation by carrying video, audio, and control over a single long-distance cable.
- 4K Input Compatibility – Future-proof connectivity supporting the latest high-resolution content.
- Advanced Geometry – Built-in correction tools for projecting on curved or irregular surfaces.
| Projector Type | Laser Installation Projector |
| Display System | 3LCD Technology |
| Panel Size | 16 mm (0.64 in) with MLA |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Screen Size | 0.76–7.62 m (30–300 in) |
| Aspect Ratio | 16:10 |
| Light Output | 8,000 lm (Normal Mode) |
| Contrast Ratio | 3,000,000:1 (Dynamic Contrast) |
| Zoom | 1.6x Manual Zoom |
| Throw Ratio | 1.23–1.97:1 |
| Lens Shift | Vertical +50% / Horizontal ±20% |
| Keystone Correction | Vertical ±30° / Horizontal ±30° |
| Corner Correction | Yes |
| Geometric Correction | Yes (Grid/Point correction) |
| Projection Angle | 360° any direction |
| Light Source | Laser Diode |
| Source Life | 20,000 hours |
| Eco Mode Support | Yes (Normal, Eco, Long Life) |

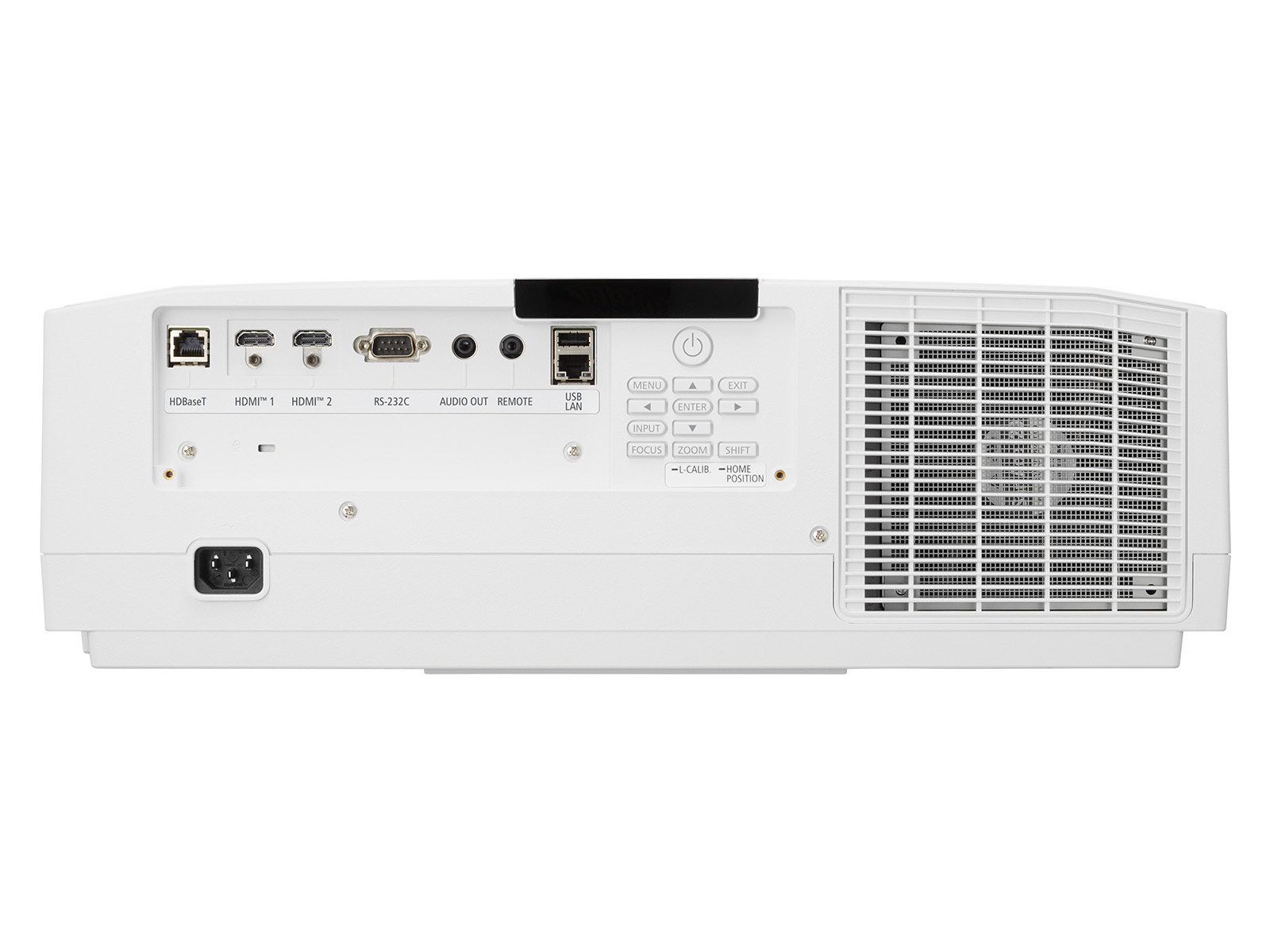

| HDMI In | 2 x HDMI (HDCP 2.2/2.3) |
| Computer In | 1 x D-sub 15-pin (VGA) |
| HDBaseT | 1 x RJ-45 (Video, Audio, Control) |
| Audio In | 2 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo |
| Audio Out | 1 x 3.5 mm Stereo Mini Jack (variable) |
| LAN | 1 x RJ-45 (100Base-TX) |
| USB | 1 x USB Type-A (Service/Power 5V/2A) |
| RS-232C | 1 x D-sub 9-pin (Control) |
| Control Protocols | Crestron Connected, PJLink, AMX Beacon |
| Built-in Speaker | 20W (Monaural) |
| Installation Flexibility | 360° Roll-free, Portrait Mode |
| Ceiling Mount | Yes |
| Cooling System | Advanced Dust-sealed Optical Engine |
| Noise Level | 34 dB (Normal) / 27 dB (Eco) |
| Dimensions (W x D x H) | 480 x 407 x 158 mm (without protrusions) |
| Weight | approx. 9.7 kg |
| Color | White |
| Power Consumption | 435W (Normal) / 285W (Eco) |
| Power Supply | 100–240V AC; 50/60 Hz |
| Operating Temperature | 0°C–40°C |
| Operating Humidity | 20–80% (no condensation) |
