AVer CAM570

4K Dual Lens Audio Tracking Camera for Medium and Large Rooms

Perfectly Track and Capture Attendees

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Compare

Add to wishlist

15 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

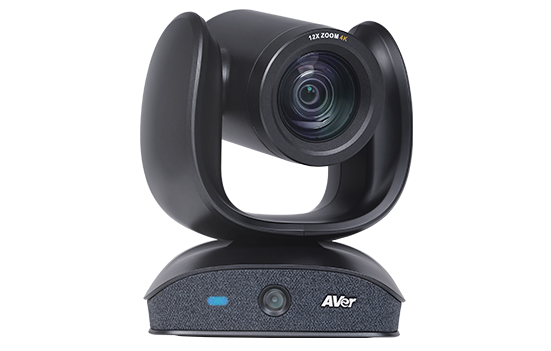

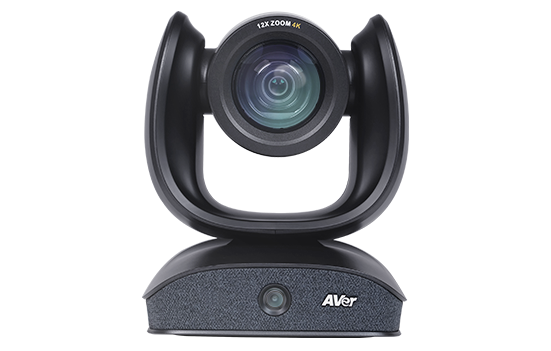

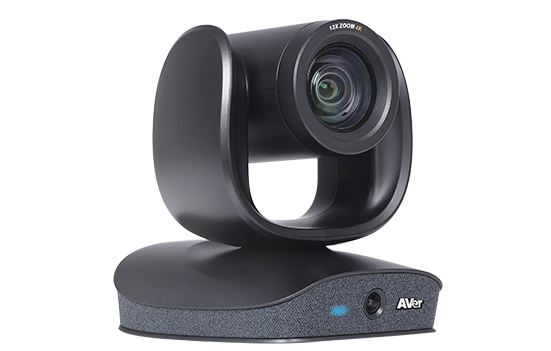

4K Dual Lens Audio Tracking Camera for Medium and Large Rooms

AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.

Built-in Audio Sensor Enables Audio Tracking

Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.

Dynamic Detection Optimizes Meeting Experience

The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.

Detects newcomers

Focuses on participants

Smart Gallery Delivers a Clearer View of Faces

Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.

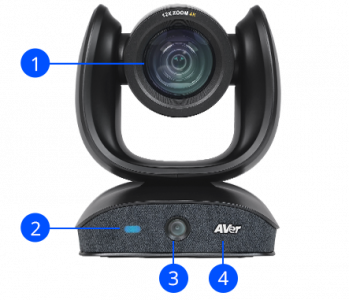

Product Overview

1 PTZ lens: 12X optical zoom
2 LED indicator
3 AI lens
4 IR sensor

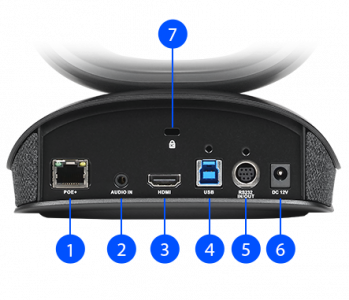

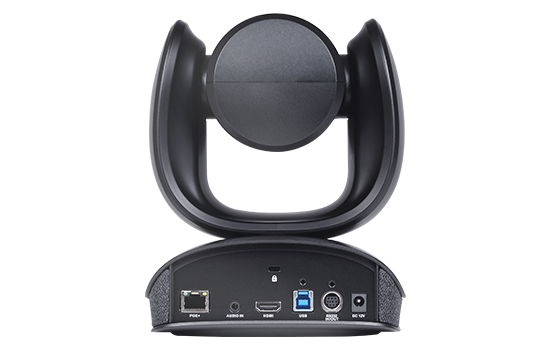

1 LAN for IP streaming and Power over Ethernet (PoE)
2 3.5mm Audio-in
3 HDMI out
4 USB 3.1 type-B
5 RS-232 in/out
6 DC 12V
7 Kensington lock

Specifications

Dual Camera
- PTZ optical zoom lens
- Image Sensor: 1/2.8” 4K Sony Exmor CMOS
- Frame Rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720,
- 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps;
- (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- 36X Zoom*: 12X optical; 3X digital zoom
- Viewing Angles: DFOV 90°; HFOV 78°; VFOV 50°
- Lens Focal Length: 3.4mm (Wide) ~ 40.3mm (Tele)
- Lens F#: 1.8 (Wide) ~ 3.6 (Tele)
- Wide Dynamic Range (WDR): Superb backlight compensation
- Minimum Focus Distance: 1.5 m
- Viewing Area: Pan: ±170°; Tilt: +90° (up) / -30° (down)
- Preset Positions: 10 via IR remote, 128 via RS-232
- Image flip and image mirror
- Secondary fixed lens (AI lens)
- Image Sensor: 1/2.5” 4K Sony Exmor CMOS
- Frame rates and resolution set according to PTZ lens settings
- Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°
*Please use Room Management (PTZApp 2) to set up 36X zoom
*Please don't put the CAM570 on the table. This will block the view of AI lens and the AI detection function will
malfunction. The suggested installation height is 1.5m away from the floor.

Innovative Features
- SmartSpeaker: Automatically track human voice and focus on the speaker
- Dynamic Detection: Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants
- Presentation Tracking: Voice-triggered tracking speaker with both preset area and people tracking
- Simultaneous 3-way Output: USB, HDMI and IP connections
- Gesture Control provides intuitive camera controls
- Smart Gallery offers great visibility for individual participant in the meeting room
- Streaming Technology: One RJ-45 cable transfers IP streaming to USB
- Audio Tracking: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yamaha) via AVer Preset Link* function.
* Make sure preset areas are within AI lens' view.
** Please download Room Management (PTZApp 2) to set up Smart gallery, USB virtual streaming and Preset Link functionality
*** While CAM570 already offers audio tracking function, we still integrate with 3rd party ceiling microphone for more audio tracking settings via the Room Management (PTZApp 2) on PC.

Connectivity
- USB type-B 3.1 connector, backward compatible with USB 2.0
- 12V/2A DC jack power adapter
- Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain)
- IP (RJ-45)
- HDMI
- Audio in* (1Vrms input)
*To avoid tracking the speakerphone, please insert speakerphone's Line-out to CAM570's Line-in port.

Audio Sensor
- Audio pick-up range: 10m, ±60°
- 3 pairs of sensor, each composed of 4 sensors
* The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.

Package Contents
- CAM570
- Power Adapter (10 ft/3 m)
- USB 3.1 Type-B to Type-A Cable (3 m)
- Remote Control
- Mini DIN9 to mini DIN8 RS-232 Adapter Cable
- HDMI Cable (3 m)
- Wall Mount Bracket and Screws
- Tripod Screw
- Drill Paper

HDMI & PoE
- HDMI 1.3: 1080p 30fps/ 60fps
- PoE+: 802.3at

Video Format
- YUV, YUY2, MJPEG
- Network video compression format: H.264
- Network protocol: RTSP, RTMP

USB
- 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB video)

Control
- IR remote control
- VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ-45)
- UVC plug and play
- WebUI: Browser IP access via Chrome. (Not support IE)
- OSD setting: HDMI out to TV monitor
- Room Management (PTZApp 2)

Power Supply
- AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
- PoE+: 802.3 at

Software Tools
- Room Management (PTZApp 2)
- Supports Windows^® 7 or later, macOS^® 11.6 or later
- Enterprise Management (PTZ Management)
- Supports Windows^® 10 or later
- Cloud Management
- Supports Chrome^™ & Microsoft Edge browsers
- EZManager 2
- Supports Windows^® 7 or later
- EZLive
- Supports Windows^® 7 or later

Environment Data
- Operation temperature: 0 to 40°C
- Operation humidity: 20% to 80%
- Storage temperature: -20 to 60°C
- Storage humidity: 20% to 80%

Dimensions
- Package dimensions: 253(L)*253(W)*271(H) mm
- Package weight: 4.8KG
- Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
- Remote control: 200 x 50 x 21mm/90g

Optional Accessories
- FONE540
- Mini DIN 8 to D-Sub 9 RS-232 Cable
- Ceiling Mount
- Foldable TV Mount
- USB 2.0 Type-B to Type-A Cable (5 m)
- USB 3.1 Extension Cable (10 m/20 m/30 m)
- 1-Port POE+ Injector

Security and Mount
- Kensington Lock
- 1/4' Tripod Mounting Screw
- Wall-mount Bracket
- Foldable TV Mount (Optional)
- Ceiling Mount (Optional)

System Requirements
- Windows^® 7/10/11
- Mac OS X 10.14 or later
- Chromebox 3 version 94.0.4606.114 or later

Hardware Specs
- 3.2 GHz Intel^® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0

Warranty
- Camera: 3 years*
- Accessories: 1 year
* We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details.

Compatible Applications
- Zoom, Microsoft^® Teams, Google Meet™, Intel^® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting^®, TrueConf, Adobe^® Connect, Cisco Webex^®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit
*For 4K UHD support, please check system/hardware requirements with your software application provider.
**Specifications may vary depending on countries and are subject to change without notice.

* Specifications may vary depending on location and are subject to change without notice. If you have any questions about specifications, please contact your regional dealer.
Please use Room Management (PTZApp 2) to set up 36X zoom, Smart Gallery, USB Virtual Streaming, and Preset Link functionality.
